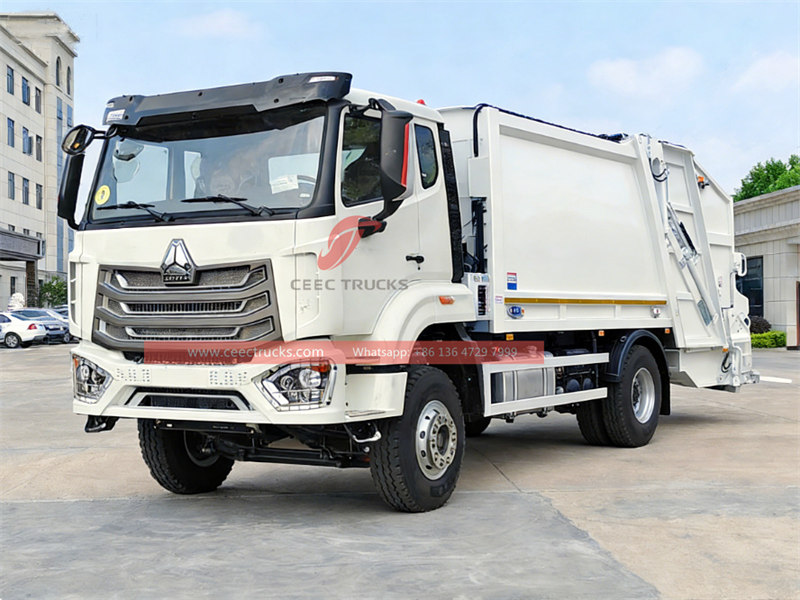

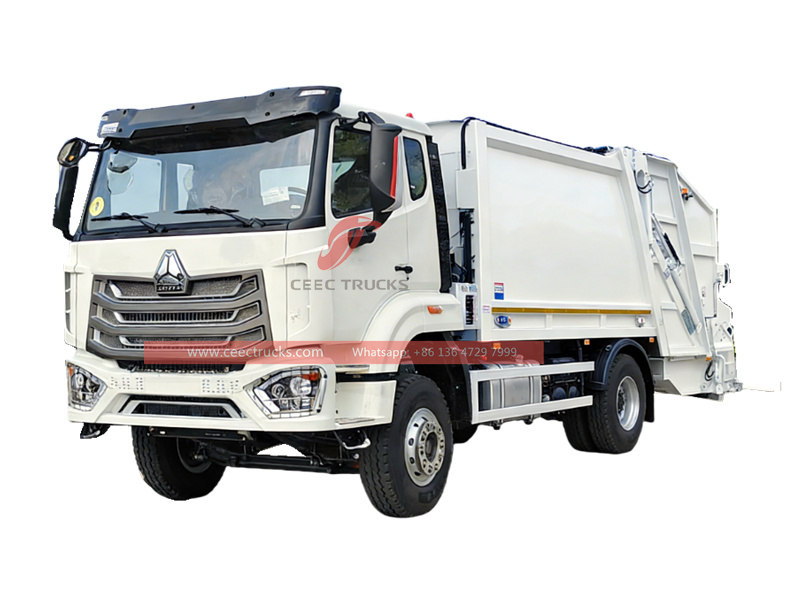

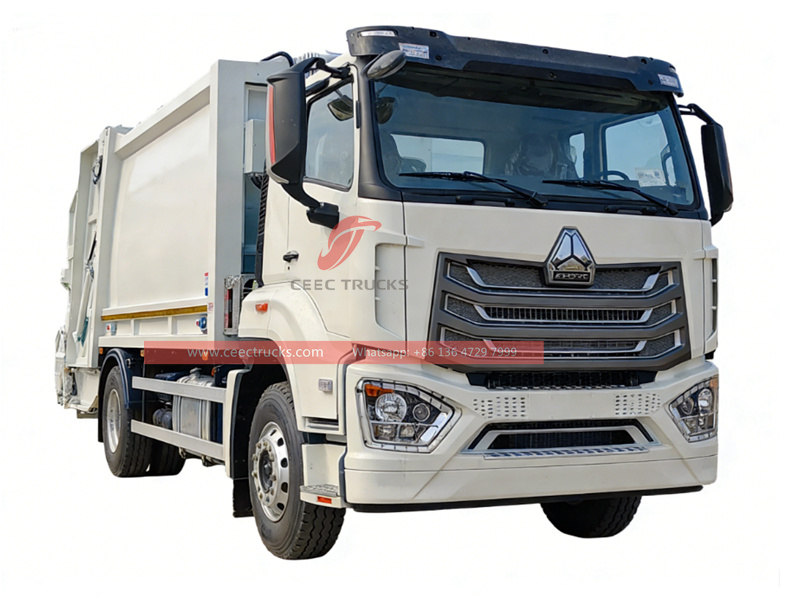

The Howo NX garbage rear loader truck is a high efficiency equipment specifically designed for urban waste management. It employs advanced comp actor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Howo NX heavy chassis, the garbage rear loader is equipped with a 370 HP Howo engine and HW 10 -speed transmission, offering robust power performance and stable driving capabilities.
Порекло производа:
China CEECВременско време:
40 DaysРадни капацитет:
16 cbmДимензија ( мм ):
8300 X 2550 X 3160Међуосовинско растојање (мм):
4600 mmСнага мотора:
370HPТип мотора:
WD615.47Осовински погон:
4x2, LHDМењач:
HW 10-shift manual transmissionПримедбе:
Rear tilting device for 360L and 1100L metal binsThe Howo NX garbage rear loader truck is a high efficiency equipment specifically designed for urban waste management. It employs advanced comp actor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Howo NX heavy chassis, the garbage rear loader is equipped with a 370 HP Howo engine and HW 10 -speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo NX 16CBM garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.
CEEC factory
is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
✦ Product Defination and Introduction « « «
Manufacturer: CEEC TRUCKS
Features:
1. Truck Chassis:
SINOTRUK HOWO NX heavy truck chassis, 4x2and 4x4 model
WD model with 300HP, 340HP or 370HP
Optional EURO 2/3/4/5 emission for different market
2. Tank material:
St52 material 5mm thick carbon steel for durable service
Q355, T420, HARDOX material can be choose
3. Tanker body:
Customized for light duty 10-18CBM compactor body, curved shape, stronger
4. Control Box:
CAN BUS control box with in cabin and rear hopper, convenient operation
Also matched hydraulic control valve for emergency usage

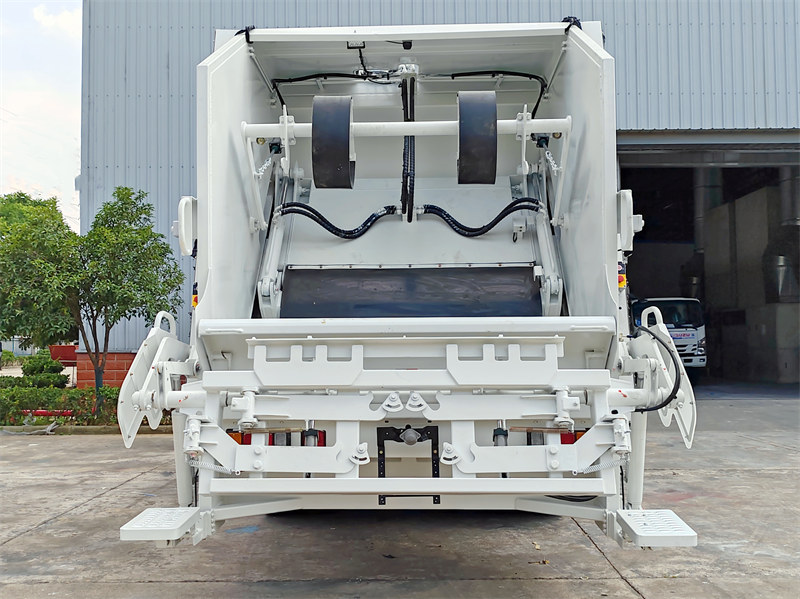

5. Rear Tilting Device: Standard 240L and 1100L bins, optional 360L, 660L, 770L, 1100L bins
6. Working Environment:
Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m
✦ Product Parameter for Howo 16CBM rear loaders « « «
|
Howo NX 16 CBM R ear L oad T ruck S pecification |
||
|
Chassis Model |
HOWO NX |
|
|
Engine |
Make: Howo |
|
|
Diesel 4 -stroke direct injection diesel engine |
||
|
Engine model: WD615.47 , Euro 2 emission standard |
||
|
6 -cylinder in-line with water cooled, turbocharged and intercooler |
||
|
Maximum output: 370 |
||
|
Maximum torque: 1500 N . m |
||
|
Displacement: 9.726L |
||
|
Transmission |
HW19710, 10 forwards and 1 reverse, manual |
|
|
Drive system |
Left hand drive |
|
|
Chassis |
Frame: U-profile parallel ladder frame and reinforced subframe |
|
|
Front suspension:8 pcs semi-elliptic leaf spring |
||
|
Rear suspension:10+6 pcs semi-elliptic lea spring |
||
|
Fuel tank: 4 00 L capacity with locking fuel cap |
||
|
Steering |
Power steering, hydraulic steering with power assitance |
|
|
Brakes |
Service brake: dual circuit compressed air brake |
|
|
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels |
||
|
ABS |
||
|
Wheels & Tyres |
Tire: 6+1 pcs 12.00R20 |
|
|
Driver's Cab |
Howo NX wide cab, with three seats, A/C, electric glass, central lock |
|
|

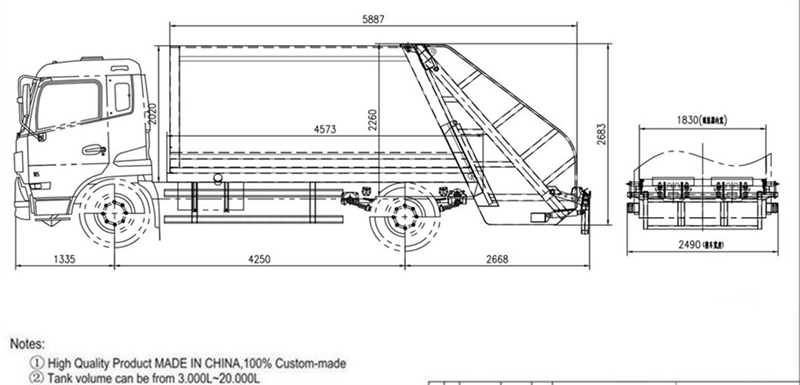

Dimensions mm |
Wheel base |
4600 MM |
|
Overall length |
83 00 MM |
|
|
Overall width |
2 55 0 MM |
|
|
Overall height |
315 0 MM |
|
|
Weight kg |
Curb weight |
130 00 KG |
|
Rated Loading Capacity |
160 00 KG |
|
|
Gross vehicle weight(GVW) |
220 00 KG |
|
|
Front axle loading capacity |
9 00 KG |
|
|
Rear axle loading capacity |
160 00 KG |
|
|
Compactor Body
|
Volume of body(m3) |
16 |
|
Volume of filler(m3) |
2 |
|
|
Time of one filling cycle(s) |
≤ 3 5 |
|
|
Lifting time of filler (s) |
8-10 |
|
|
Time of discharge (s) |
≤40 |
|
|
Pressure of hydraulic system (Mpa) |
18 |
|
|
Front/rear sewage capacity (L) |
250+150 |
|
|
Control system |
CAN-bus (electrical) and manual (hydraulic) |
|

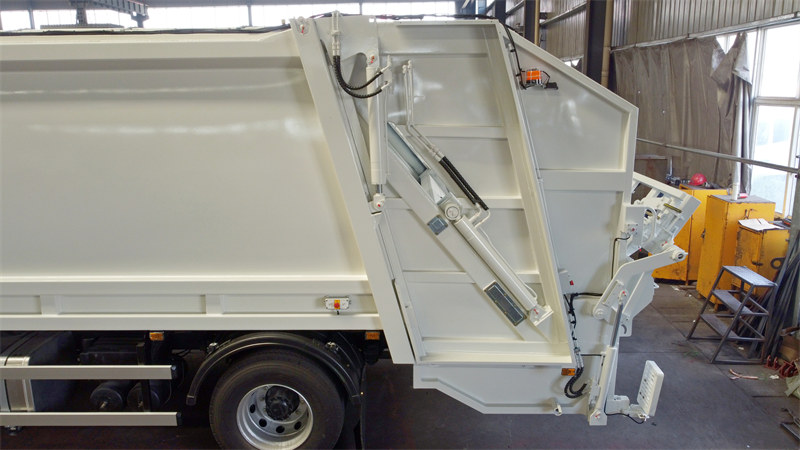

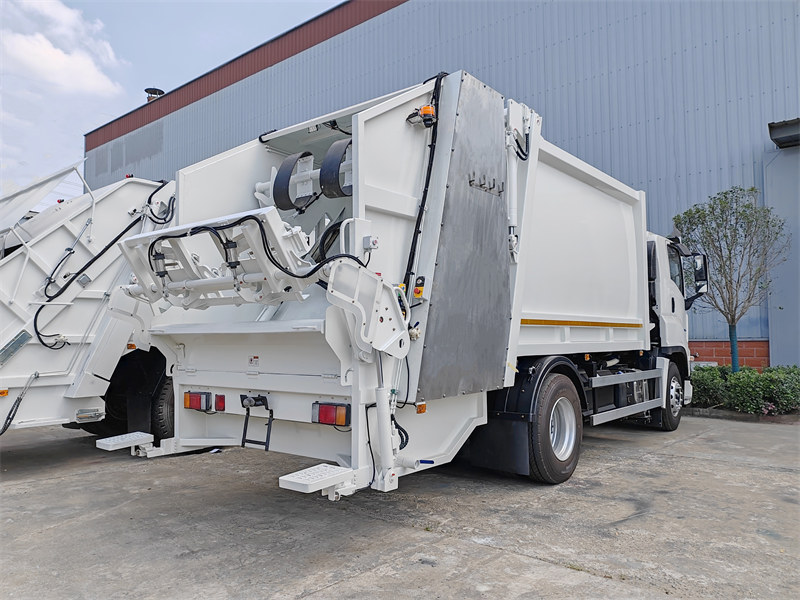

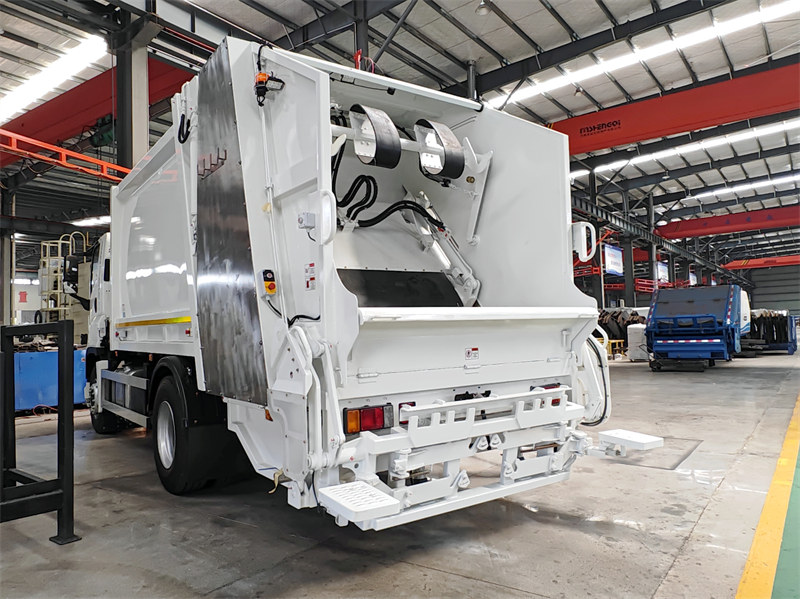

✦ Howo 16cbm Rear End Loader Truck Details « « «
► Loading mechanism :
N o-load cycle time ≤35 seconds, accurate positioning of the garbage bin, and no residue when dumping garbage.
It can be started and stopped at any position under load conditions, and it runs smoothly without jamming.
► Comp actor mechanism :
C ycle time ≤30 seconds, no shaking or abnormal noise during compression, and no permanent deformation of the mechanism.
Passed 12,000 compression cycle tests to ensure long-term stable operation.
► Unloading mechanism :
The unloading cycle is completed within 60 seconds, and there is no residue in the garbage bin.
The unloading door is reliably locked, and there is no risk of opening it automatically during driving.
► Zero leakage of sewage :
The garbage bin is filled with 30-50mm of water and there is no leakage after standing for 60 minutes.
Anti-corrosion treatment: The inner wall of the box is made of anti-corrosion material to extend the service life.
► Hydraulic system
No leakage verification: No oil leakage in hydraulic pipelines and joints under rated pressure.
Cleanliness control: The solid contamination of hydraulic oil meets the standard limit to ensure long-term operation of the system.
► Ultra-long durability test ：
12,000 cycles for the feeding and compression mechanisms and 1,000 cycles for the unloading mechanism to simulate a high-intensity working environment.
Reliability ≥ 80% , t he failure rate is extremely low, and the average trouble-free working time is leading in the industry.
► Fault classification management ：
Adopt four-level fault classification (fatal/serious/general/minor), strictly record and optimize the design to ensure worry-free use for users.

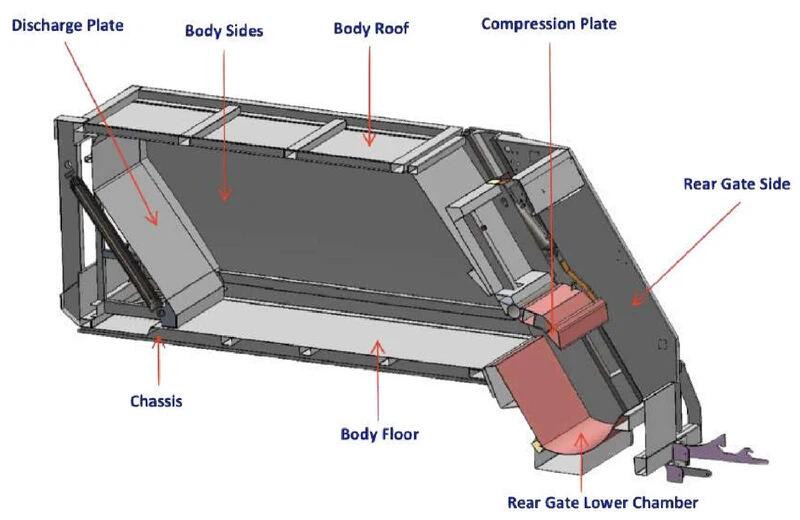

✦ Body Structure and Material Durabilit y « « «
⇒ Finite Element Analysis (FEA) and Topology Optimization:
CEEC Trucks Group simulates the entire process of waste compression and unloading, accurately identifying areas of concentrated stress.
Based on this, topology optimization is performed to achieve light weighting while maintaining strength.
|
|
⇒ High-Strength Steel Plates and Wear-Resistant Materials:
High-strength wear-resistant steel plate T420 is used in key load-bearing areas, with a Brinell hardness (HB) of 400 or higher.
The main body plates should be made of high-strength weather-resistant steel or galvanized steel, and the design avoids areas prone to water accumulation.
⇒ Welding Process and Corrosion Protection:
Welding must be automated using robotic welding to ensure weld penetration, strength, and consistency.
Key load-bearing welds require non-destructive testing (e.g magnetic particle or ultrasonic testing).
CEEC Trucks Group uses cathodic electrophoretic primer to enhance corrosion resistance.
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5. promptly delivery. any order is welcome.
We CEEC also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
★ China WD615.47 Euro 2 diesel engine, super powerful
★ HW 10-shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized Howo 16cbm rear loader exporter
★ Training service for Howo 16cbm garbage compactor truck
